تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: Battlink
إصدار الشهادات: CE MSDS UN
رقم الموديل: بات-CI-125/241-L
الوثيقة: [Product Profile] [EN] [BAT...SS.pdf
شروط الدفع والشحن
الحد الأدنى لكمية: 1
تفاصيل التغليف: صندوق خشبي
وقت التسليم: 35
القدرة على العرض: 1000pcs في الشهر
مواد: |
LFP |
طاقة: |
241 كيلوواط/ساعة |
القوة المقدرة: |
125 كيلو واط |
طلب: |
المباني التجارية والصناعية · المصانع · مجمعات المكاتب · أنظمة الطاقة المتجددة المتصلة بالشبكة |
مواد: |
LFP |
طاقة: |
241 كيلوواط/ساعة |
القوة المقدرة: |
125 كيلو واط |
طلب: |
المباني التجارية والصناعية · المصانع · مجمعات المكاتب · أنظمة الطاقة المتجددة المتصلة بالشبكة |

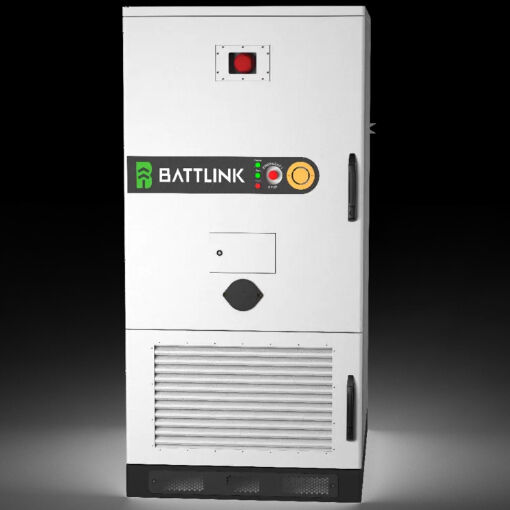

The 125kW / 241kWh On-grid Energy Storage System features advanced liquid-cooling technology to ensure stable performance with ultra-low noise operation, making it suitable for commercial and industrial applications, even in noise-sensitive environments.With a compact and integrated design, the system minimizes installation space while delivering high power output for peak shaving, load shifting, and energy optimization.
Product features:
Fully compliant with CE safety and EMC requirements, ensuring high reliability and regulatory acceptance in the European market.
| Parameter | BATT-CI-125/241-L |
| Application | On-grid |
| Cell Type | LFP 3.2V / 314Ah |
| Battery Module | 48S1P / 48.23kWh |
| System Configuration | 240S1P |
| Rated Voltage | 768V |
| Voltage Range | 648–864V |
| System Energy | 241.15kWh |
| Charge / Discharge Rate | 0.5P |
| Cycle Life | ≥7000 cycles |
| Rated Power | 125kW |
| Rated Voltage | 400V |
| Rated Current | 181A |
| Operating Frequency | 50Hz / 60Hz |
| Power Factor | 1 Leading ~ 1 Lagging |
| System Efficiency | 88% |
| Thermal Management | Liquid-cooled |
| Fire Protection | Aerosol / Perfluorohexanone |
| Operating Temperature | -20 ~ +55°C (>45°C derating) |
| Operating Humidity | 0–95% (non-condensing) |
| Operating Noise | ≤75 dB(A) @ 3m |
| Max. Altitude | 4000m (>2000m derating) |
| Ingress Protection | IP54 |
| Communication | Ethernet |
| Weight | 2.46T |
| Dimensions (W×D×H) | 1040 × 1440 × 2154 mm |
✔ Low noise, suitable for urban environments
✔ Small footprint, easy integration
✔ CE certified, Europe-focused design
✔ Fast grid approval and deployment
✔ Stable, efficient, long-term operation
